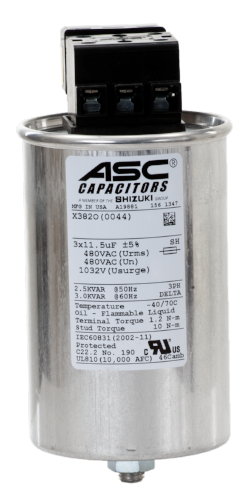

X382 3 Phase

Capacitance Range:
3 x 8.0 – 3 x 233 uF Delta Configuration

Voltage Range:
240 – 850 VAC

Construction:
Sealed Aluminum Can with M12 Stud and Gel or Oil Fill
UL Approval to 10000 AFC (for voltages up to 620Vrms)

Application:
3 phase filtering
Power factor correction




ASC™ X382 (Three Phase) capacitors are manufactured with very high quality metallized polypropylene film, designed for long life, low dielectric losses, higher RMS current ratings, and low ESR. The capacitors are filled with ASC™ soft gel or biodegradable vegetable based oil designed to offer excellent thermal conductivity to help reduce internal heating and extend the life of the capacitor. The capacitor is incorporated with internal UL recognized fusing mechanisms that interrupt when pressure reaches a tested level.

Download the Data Sheet.

Other Values

CAP Voltage Kvar IRMS ΔT10C IPEAK ISURGE RTHCE ESR(5kHz) Diameter Height Pieces/Box Data Sheet
[µF] [UNDC] 60 Hz [ARMS] [kA] [kA] [°C/W] [mΩ] "D" [mm] "H" [mm]


3X3.84 480 1 5.2 0.13 0.4 3.4 13 75 157


3X5.76 480 1.5 7.3 0.2 0.6 3.4 9 75 157


3X11.5 480 3 11.1 0.24 0.72 3.4 7.2 75 157


3X19.2 480 5 14.9 0.45 1.33 3.1 4.6 75 157


3X23.04 480 6 19.5 1.102 3.33 2.7 2.9 85 175


3X30.72 480 8 22 0.4 1.2 2.4 3.1 85 202


3X38.5 480 10 25.4 0.45 1.4 2.4 2.7 85 202


3X57.7 480 15 28.5 0.55 1.6 1.9 3.4 85 270


3x69.1 480 18 31 0.45 1.3 1.9 3.2 85 270


3X77 480 20 36 0.5 1.5 1.9 2.8 85 270















3X12.3 600 5 12.1 0.6 1.9
2.5 75 177


3X14.7 600 6 14.1 0.7 2.3
2.5 75 177


3X20.3 600 8.3 18.3 1 3.1
2.8 85 177


3X24.4 600 9.9 19.9 0.46 1.4
2.8 85 177


3X30.4 600 12.4 23.7


3.1 85 202


3X36.5 600 14.9 26.3 0.7 2.2
3.1 85 252


3X40.7 600 16.6 28.8


2.8 85 252


3X48.7 600 19.8 31.8 1.1 3.1
3.2 85 290


3X55.8 600 22.7 35.5


3.6 100 290


3X61.4 600 25 38.3


3.8 100 290
